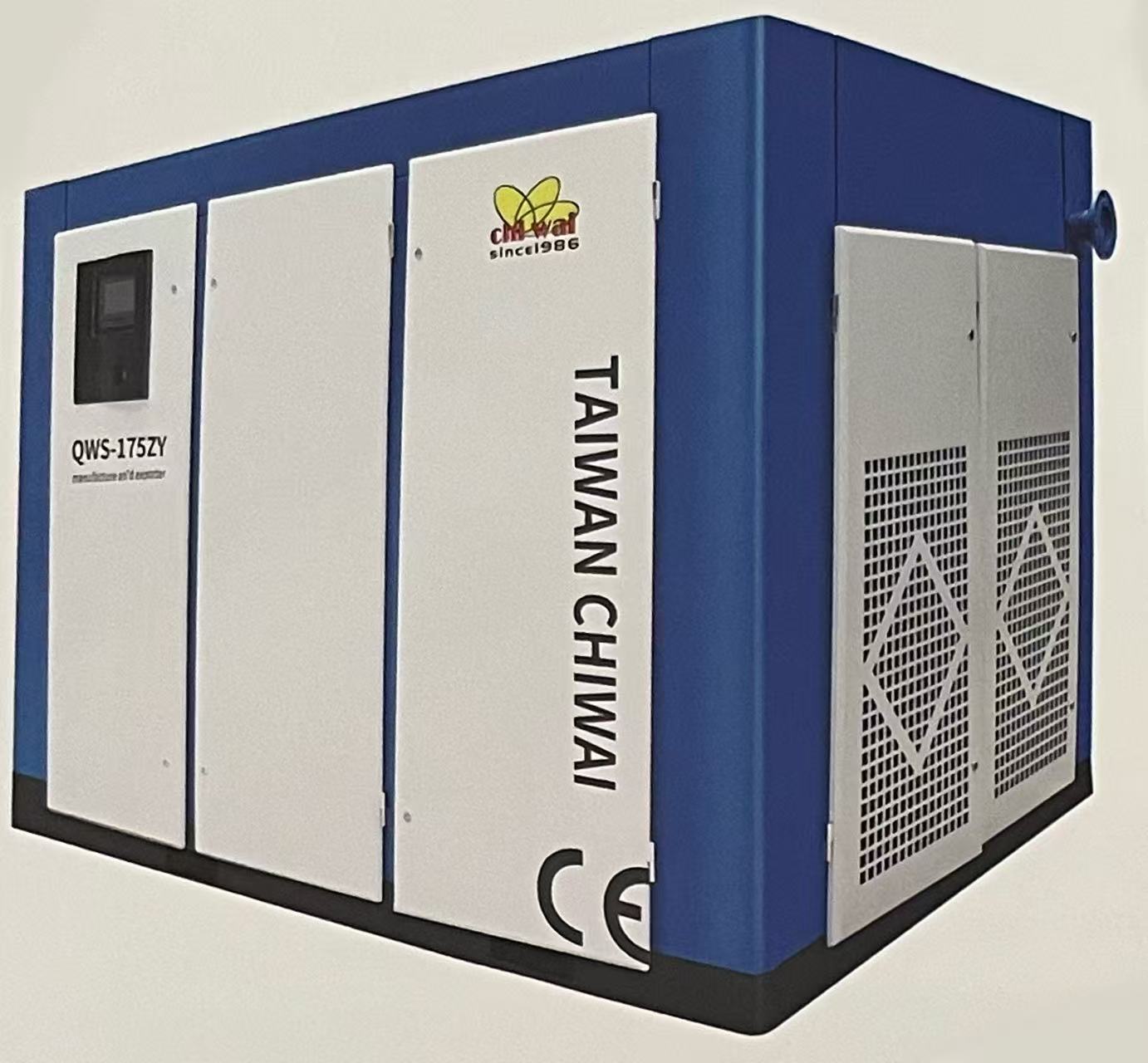

Quanwei Machinery (Jiangsu) Co., Ltd. has been deeply engaged in the field of air compressor machinery and equipment. With mature R&D and production capabilities, the QWS-175ZY two-stage compression permanent magnet screw air compressor developed by the company has been stably put on the market. This model combines the advantages of high energy efficiency and stable reliability, adapts to various medium and large-scale industrial air demand scenarios, and provides strong power support for enterprise production.

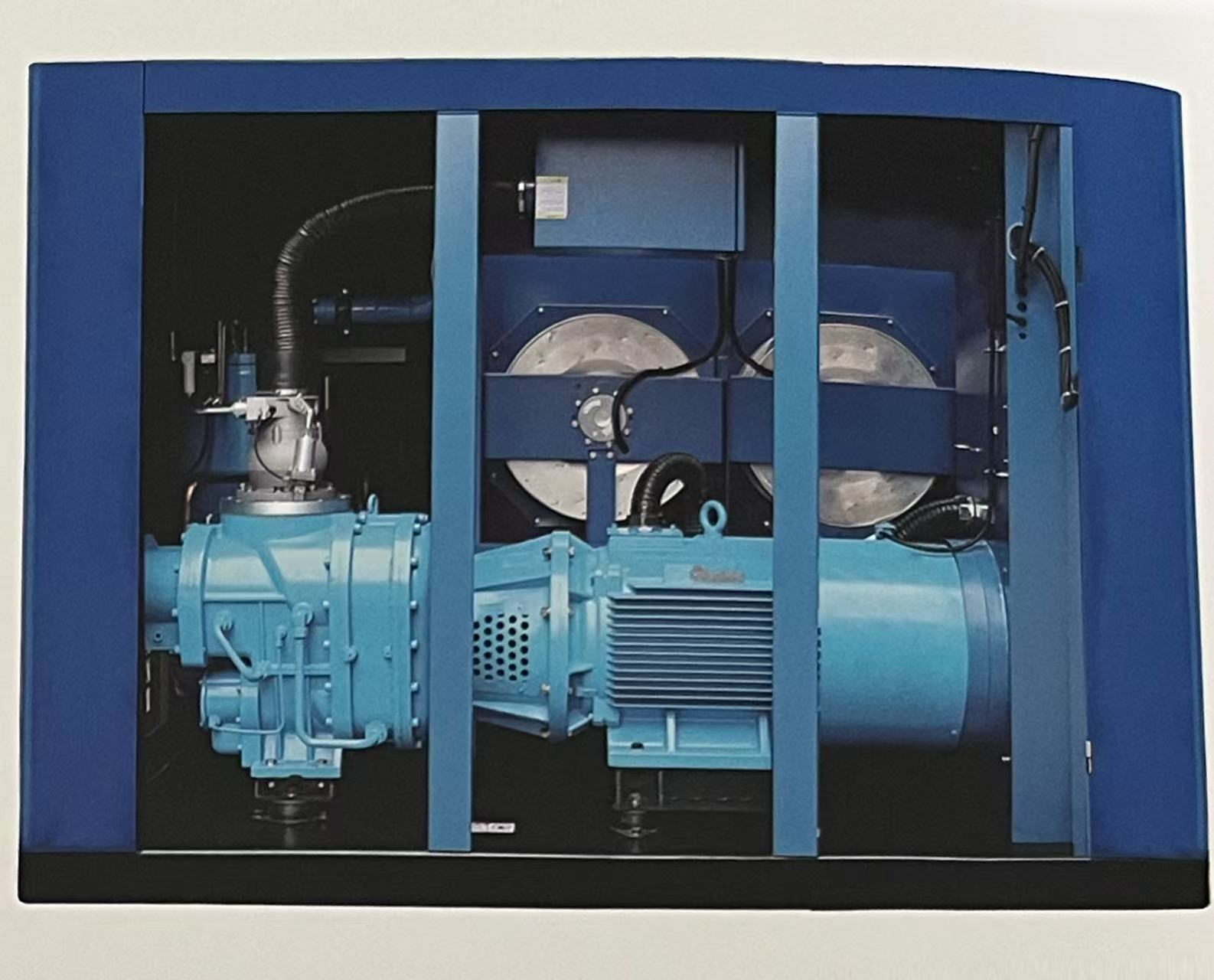

As a medium and large-scale industrial air compressor, the QWS-175ZY model has a rated power of 132kw (175hp). It adopts a design combining two-stage compression and permanent magnet technology. Compared with traditional models, it effectively reduces the single-stage compression ratio, improves volumetric efficiency, and reduces energy consumption at the same time. It conforms to the development demand of energy conservation and consumption reduction in the industrial field, and balances power output and energy-saving benefits.
This model has excellent exhaust performance and can be flexibly adapted to different working conditions. The specific exhaust parameters are as follows: when the exhaust pressure is 0.7MPA, the exhaust volume is 10.6-30.2m³/min; when the exhaust pressure is 0.8MPA, the exhaust volume is 9.9-28.4m³/min; when the exhaust pressure is 1.0MPA, the exhaust volume is 8.3-23.8m³/min; when the exhaust pressure is 1.3MPA, the exhaust volume is 7.1-20.2m³/min. It can meet the continuous air demand of manufacturing, mining, building materials and other industries.
In terms of equipment structure and performance, the QWS-175ZY also performs outstandingly. The overall dimensions of the unit are 2950mm×1900mm×2000mm, which is suitable for installation in medium and large-scale workshops and outdoor operation sites; the operating noise is controlled at 76±3dB(A), reducing interference to the production environment; the outlet size is DN80, and the overall weight is 3250kg. The structural design is reasonable, which is convenient for installation and maintenance.
It is worth noting that the volumetric flow rate (FAD) of this model is tested under load conditions in strict accordance with the requirements of ISO001217 [GB/T3835] standard, ensuring accurate parameters and stable performance, and providing reliable product guarantee for customers.
Quanwei Machinery has always focused on product quality. As an important part of the company's medium and large-scale air compressor product matrix, the QWS-175ZY two-stage compression permanent magnet screw air compressor, with accurate parameters and stable performance, continuously provides efficient and reliable air power solutions for customers in various industries, helping enterprises improve production efficiency and reduce operating costs.
